Flutter Login Animation
Implementing super smooth animations in your Flutter App
In this post, I will be taking you through the steps to implement smooth animations in your Flutter app.
Here is a timeline showing all the animations that take place in the app.
The secret behind smooth transition between the login screen and home screen is the fact that the last frame of the login screen matches perfectly with the first frame of the home screen.

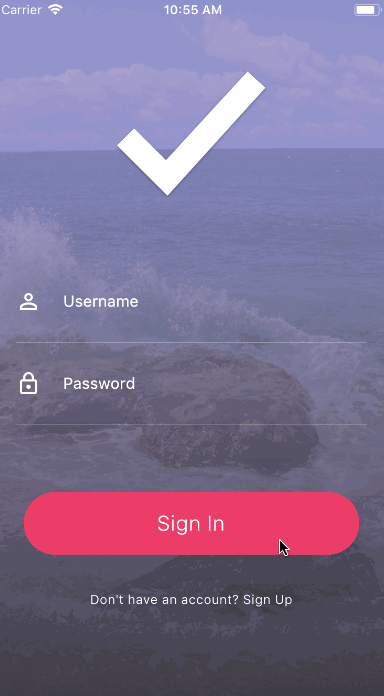

Let’s take a closer look at the login screen.
In the login screen, the animation begins when the user clicks on the Sign In button. The button gets squeeze into a circular shape, and the text inside the button is replaced by a “loading” animation. Next, the loading animation inside the button disappears and the button grows in a circular fashion while moving to the center. Once at the center, the button grows rectangularly and covers the entire screen.
Once the entire screen is covered by the button, the app navigates to the Home screen.
Here the initial animation does not need any user input. The Home screen comes on the screen with a “fade” animation. The profile image, the notification bubble, and the “+” button grow on the screen in a circular fashion, while the list vertically slides onto the screen.
When the user clicks on the “+” button, the “+” inside the button disappears and circularly grows in size while moving to the center of the screen. Once at the center, the button now grows rectangularly and covers the entire screen.
Looking at things in a different way, animations can also be divided into Entry Animation and Exit Animation.
The timeline for the Entry Animation is as shown below:
And the timeline for the Exit Animation is this:
Enough theory! Let’s get started with the coding.
Animating the Login Screen
On this screen, the animation starts when the user clicks the
Sign In button. The animation in this screen can be broken down in the following parts:
Design the button
Login screen has this button component on it:
width property of the
Container widget. This property is going to play an important role in the button’s initial animation where it is squeezed into a circle.
Initial setup prior to building the animation.
We need to tell the app to start the animation only when the user has clicked the Sign In button. For that, we create an
AnimationController class that is charged with management all of the Animations.
In simple words,
AnimationController controls the animation. This class is one of the big actors of the animation framework in Flutter. It extends the Animation class and adds the bare minimum elements to make it usable. Despite its name, this class is not a controller of the animation object, but of the animation concept.
AnimationController basically does is that it takes the animation from one double value to another in a specified time.
The basic constructor of an
AnimationController looks like this:
AnimationController needs a
TickerProvider to obtain their
Ticker. If you are creating an
AnimationController from a state, then you can use the
SingleTickerProviderStateMixin classes to obtain a suitable
TickerProvider. The widget test framework
WidgetTester object can be used as a ticker provider in the context of tests.
We initialise this constructor inside a
The only thing we need to focus on here, is the
Duration widget. This widget defines the total time which the animations of the Login screen have to occur.
LoginScreenState is a stateful widget and creates the
AnimationController specifying a 3000 milliseconds duration. It plays the animation and builds the non-animating portion of the widget tree. The animation begins when a tap of the button is detected on the screen. The animation runs forward, then backward.
I have used the
Tween class along with the
Tween specifies the point at which the animation should
end. At the beginning of the animation, the
width of the button is 320.0 pixels, by the end of the animation the button is reduced to the
width of 70.0 pixels. The height of the button remains the same. Duration is defined by the
Interval widget which is called inside the
Interval basically tells the app to squeeze the button into a circle within 250 milliseconds.
Once the button is squeezed into a circle, we need the Sign In text to disappear.
I have used a conditional statement to achieve this. If the
width of the button is greater that 75.0 pixels, then the button should contain the Sign In text. Else, the button should contain a
Next, I want the button component to zoom out. To do this, simply create a
Tween widget that will tell the button to grow from 70.0 pixels to 1000.0 pixels.
Tween in itself cannot animate the button. For that we need to use
animate() to link the
Tween with a
CurvedAnimation widget, which contains an
Interval widget which tells the app to complete the animation between 350 milliseconds.
We also need to simultaneously remove the
CircularProgressIndicator from the button. For that we again make use of conditional statements.
buttonZoomOut.value is equal to 70, the
buttonSqueezeAnimation will work. And when the
Interval from the above code snippet goes above 0.550,
buttonSqueezeAnimation stops and the
buttonZoomOut animation begins.
buttonZoomOut is still at 70.0 pixels, then the height is changed to 60.0 pixels. Else, the height is also made equal to buttonZoomOut’s value.
Now if the
buttonZoomOut.value is less that 300.0, then we keep the
CircularProgressIndicator inside the button. Else, we replace it with a null.
Here is the code for it:
Finally, we want the button container to grow and cover the entire screen. For this we will first remove the
bottom) of the whole page and
radius of the container should also be negligible. The button should now grow and cover the entire screen with a color transition animation.
Once the animation is complete, the user is navigated to the home screen.
This is the secret to the smooth transition between the two screen. We need the last frame of the Login screen to match with the first frame of the Home screen. I have also added a listener that waits till the button component has completely covered the entire screen. Once that is done, I have used Flutter’s in-built
Navigator to take us to the Home screen.
Animating the Home Screen
Just like the Login screen, animation on the home screen can be broken down into the following parts:
From the GIF shown above, we can see that when the app navigates to the home screen, the very first thing that happens is that the screen fades to white.
Fade the Screen
To do this, we create a new
ColorTween widget and name it as
fadeScreenAnimation. Inside this widget, we change the
opacity from 1.0 to 0.0, making the color dissappear. We link this widget to
Next we create a new widget called
FadeBox and call the
fadeScreenAnimation inside it.
Hero is a widget of Flutter that is used to create
hero animations. This animation makes an object “fly” from one screen to another. Any children added to this widget will be qualified for
The profile image, notification bubble and the add button grow up in a circular fashion.
All the elements in the top half of the screen take their respective positions. As the profile image and list tiles grow, they animate vertically and take their positions.
With this, the Home Screen is rendered on the screen. Now lets take a look at the animations which will take the user back to the Login Screen.
When the user clicks the
Add button, the
AnimationController is initialised:
The button navigates from the bottom right of the screen to the center
While the button is moving to the center of the screen, it slowly grows in size and the
When the button reaches the center, it is zoomed out in a circular manner, gets converted into a rectangle and covers the whole screen.
Finally, once the animation is complete, the app needs to navigate back to the login screen.
That’s All Folks!
You can check out the entire code of this App here:
